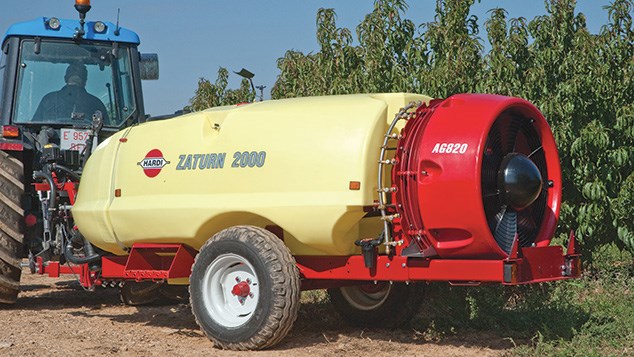

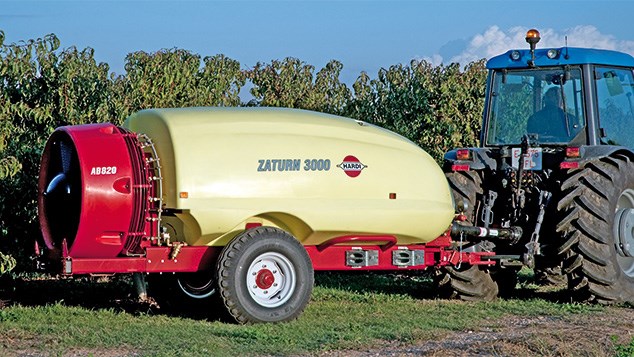

ZATURN

Streamlined design

The ZATURN design is slim and streamlined, making it ideal for passing between closely spaced rows without catching or damaging valuable plants. The tank and chassis provide the lowest possible centre of gravity to ensure stability on sloping ground and when turning in headlands. The ZATURN 1500, for example, is perfect on small and steep properties. It offers excellent stability and is just 1350mm wide. The tough steel chassis is protected against weather and chemical corrosion, while the UV-stable polyethylene tanks are smooth, seamless and long-lasting. All models have a 15 litre Hand Wash Tank for operator hygiene, and an optional 70 litre Rinse Tank for in-field cleaning.

Air and fluid options

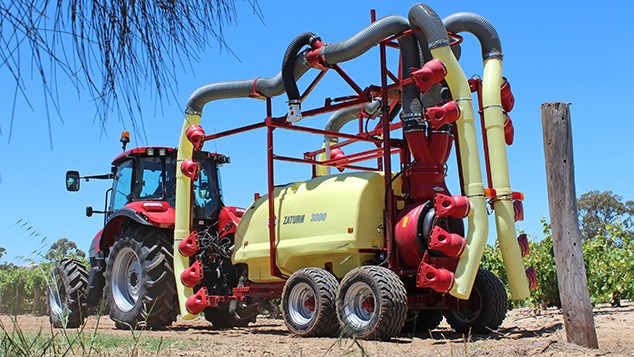

ZATURN offers a wide choice of air and spray options that makes the family suitable for spraying any orchard or vineyard crop. The sprayer can be fitted with a 750mm or 850mm axial fan featuring the latest synthetic fan blades for performance and safety. Engineered to maximise airflow, the axial air systems work with stainless steel deflectors to direct spray into trees. A range of hydro-pneumatic nozzle systems can also be fitted, using a turbine fan that produces high speed, high pressure air for atomizer spout and nozzle systems that ensure superior penetration even in fully developed canopies.

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Tank, litres 1000 1500 2000 3000
Rinsing tank, litres 90 140 190 290
Rinsing nozzle 2 nozzles 2 nozzles 2 nozzles 2 nozzles
Clean water tank 15 l 15 l 15 l 15 l
Agitation 2 Venturi tank bottom, another front and 2 in the wheel area 2 Venturi tank bottom, another front and 2 in the wheel area 2 Venturi tank bottom, another front and 2 in the wheel area 2 Venturi tank bottom, another front and 2 in the wheel area
Indicator Round dry tank level indicator Round dry tank level indicator Round dry tank level indicator Round dry tank level indicator
Diaphragm HARDI pump 1303/9 - 114 l/min 364/7 - 145 l/min 364/7 - 145 l/min 364/7 - 145 l/min
Hydraulic brakes No No No Yes
Road homologation Yes Yes Yes Yes
Wheels 26/12x12-10PR
340/55-16 12PR
340/55-16 12PR 340/55-16 12PR
Track width, m 1,1 - 1,3 1,2 - 1,4 m 1,2 - 1,4 m 1,4
Overall width, m 1,4 - 1,6 1,3 - 1,7 1,3 - 1,7 1,8
Lights Yes Yes Yes Yes
Drawbar Turnable "V" STD Turnable "V" STD Turnable "V" STD Turnable "V" STD
PTO Shaft T300 - 1 Homokinectic T300 - 1 Homokinectic T300 - 1 Homokinectic T300 - 1 Homokinectic
Operating unit CA/2 (2 fluid sections with elec. valves with compensated returns) CA/2 (2 fluid sections with elec. valves with compensated returns) CA/2 (2 fluid sections with elec. valves with compensated returns) CA/2 (2 fluid sections with elec. valves with compensated returns)
Section filters 2 inline filters 2 inline filters 2 inline filters 2 inline filters
Fluid box FB3610 (Standard FB3610 (Standard FB3610 (Standard FB3610 (Standard
Gearbox 2 gears + neutral (3,5 /n / 4,4) 2 gears + neutral (3,5 /n / 4,4) 2 gears + neutral (3,5 /n / 4,4) 2 gears + neutral (3,5 /n / 4,4)

ABOUT HARDI

HARDI AUSTRALIA PTY LTD is a subsidiary of HARDI INTERNATIONAL, a world leader in sprayer technology. The majority of HARDI sprayers and booms sold in Australia and New Zealand are manufactured here. We employ more than 100 engineering, testing, distribution and support staff in 15,000 square metres of modern facilities, located on our 10-hectare site in Adelaide, South Australia.

LEADING THE WORLD

For over 60 years, HARDI INTERNATIONAL has single-mindedly dedicated itself to improving the efficiency and precision of sprayed plant protection. Now a world leader in the field, HARDI recognises its role in global food security through the safe and sustainable application of agricultural compounds.

The Australian product development centre works closely with five other HARDI development centres internationally, to share local innovations with the world and to streamline the delivery of global improvements at home.
