COMMANDER

Brilliant boom choices

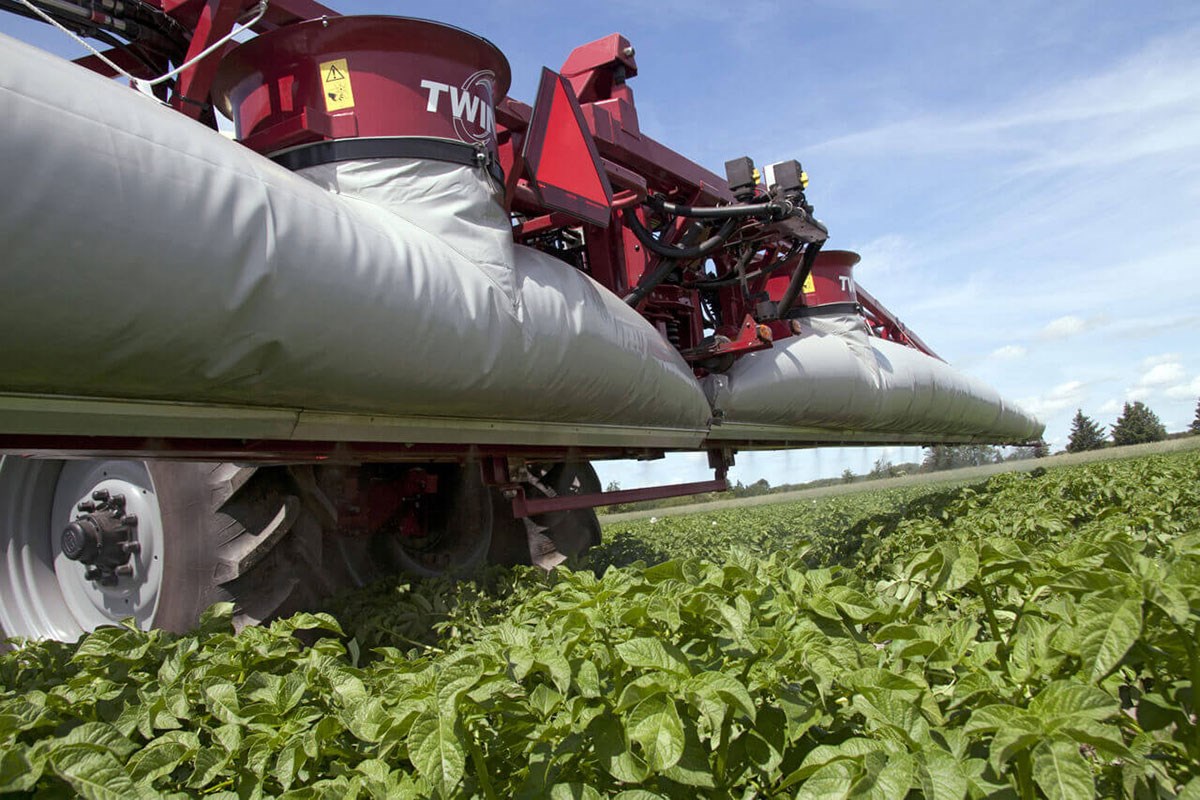

The COMMANDER range converts capacity into productivity with a choice of wide, high-performing HARDI booms. For width without weight, COMMANDER will mount HARDI PARAGON Aluminium booms from 36.5 m to 42.5 m and, and our largest 48.5 m boom on COMMANDER 8500 or 10000 models. Strong, rigid steel booms are available in widths from 30 m to 36 m (FORCE) and 36 m to 42 m TERRAFORCE. Or, for the ultimate in weather-defying drift control, COMMANDER is also compatible with HARDI's remarkable TWIN air spraying system.

Simple, logical systems

COMMANDER has a simple, logical fluid system and a centralized WorkZone, making it very easy to set up, clean and maintain. The WorkZone is managed with just two taps and a SmartValve pressure selector, conveniently co-located with the filling point, filters, hand rinse tank and other vital functions. There is a single bank of grease nipple for the entire sprayer, a safety locker, and a convenient steel work platform at the front of the sprayer.

TALK TO A SALESPERSON

This field is required
This field is required
This field is required Not a valid number!
This field is required This is not a valid email.
reCAPTCHA is required

For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

Model Specifications


Tank, litres 6500 8500 10000
Pumps, type - l/min 464 - 334 464 - 334 464 - 334
Booms, m FORCE 30, 32, 33, 36 FORCE 30 - 36 FORCE 30 - 36
Booms, m TERRA FORCE 36, 38, 40, 42 TERRA FORCE 36 - 42 TERRA FORCE 36 - 42
RinseTank 730 730 730
Total height (TERRA FORCE), m 3.65 3.65 3.65
Total length (TERRA FORCE), m 8.35 8.85 8.85
Length draw to axle, m 5.50 6.05 6.05
Turning radius SafeTrack, m 6.20 9.00 9.00
Track width, m 2.20 - 3.00 2.20 - 3.00 2.20 - 3.00
Width (TERRA FORCE), m 3.50 3.50 3.50
Clearance, m 0.795 0.795 0.795
Weight on drawbar (empty), kg 1565 1134 1145
Weight on axle (empty), kg 5534 6226 6255
Weight total (empty), kg 6899 7360 7400
Weight total (empty tank), kg 6899 7360 7400
Suspension Hydraulic Hydraulic Hydraulic
Suspended drawbar - Standard Standard
Standard tyre 520/85 R42 520/85 R42 710/70 R42
Tyre options 620/70 R42 620/70 R42 620/70 R42
